Devices

DEVICES

FacePass - Standalone Facial Recognition System


FacePass is a breakthrough innovative product. The newly applied Anviz new BioNANO core algorithm and powerful hardware platform ensures the terminal identification speed less than 1sec. The advanced infrared light source design enables the terminal to work very well in changing illumination even in total darkness. It is applicable to any users no matter with different complexions, genders, facial expressions, beards and hair styles. What's more, the elegant appearance is also very attractive.



Facepass

Powerful facial recognition system. Delivers fast and consistent identification.

Product Features:

  • 300 Users, 200000 Records big capacity.
  • Dual Cameras respectively for induction and verification.
  • Body Induction auto switch on face verification.
  • Voice and LED Prompt guarantees best user experience.
  • Touch Screen for convenient and stable use.
  • USB pen drive data download, TCP/IP connectivity.
  • Useful web server function for convenient use and set up.
  • Tamper alarm offers better self-protection.
  • Dynamic digital keyboard ensures safe use.
  • Inbuilt RTC and 5 Group Scheduled Bell guarantee accurate and convenient time management.
  • High speed Samsung ARM platform CPU ensures the verification speed less than 1Sec.
  • Advanced infrared light source design enables the terminal to work well in changing illumination even in total darkness.
  • Applicable to any users no matter with different complexions, genders, facial expressions, beards and hair styles.

Parameters:

Item Description
Algorithm BioNANO V10
Sensor AFOS300 Optical Sensor
Scan Area 22mm*18mm
Resolution 500 DPI
LCD 3" Widescreen High Definition TFT Display
Fingerprint Capacity 3000
Log Capacity 50000
Identification Mode FP, Card, ID+FP, ID+PW, PW+Card, FP+Card
Identification Time <0.5 Sec
FRR 0.001%
FAR 0.00001%
Communication Interface USB Device, USB Host, TCP/IP
Card Reader Module Optional 125KHZ EM RFID, 13.56MHZ Mifare
Name Display Yes
Fingerprint Image Display Yes
Self-defined Status 16 Customizable Time and Attendance Status
Auto Status Switch Yes
Work Code 6-digit
Short Message 50
Daylight Saving Yes
Web Server Yes
Self-service Record Inquiry Yes
Size 140(w)*190(h)*30(d)mm
Temperature -10°C to 40°C
Operating Voltage DC 5V
Certificates FCC, CE
Applicable Situation Up to 2000 Employees

EP300 Fingerprint Time Attendance

With Anviz industry-leading fingerprint algorithm BioNANO & waterproof, dustproof and scratchproof fingerprint sensor, EP300 offers a perfect time attendance solution. Special fingerprint positioning design makes it extremely friendly for both system administrators and everyday users.With a built-in, rechargeable battery, EP300 is ideal for portable or backup use or in the event there is no AC power available. Whenever you need to get the employee in and out records, everything is easy through USB cable (no driver needed), USB pen drive or TCP/IP network. Furthermore, the casing of EP300 has been made with recycled carbon materials and has no surface painting treatment. Anviz commitment to being a responsible environmental citizen includes working to ensure our products are environmentally safe.

EP300 Fingerprint Time Attendance

Product Features:

  • Unique fingerprint positioning design
  • Texas Instruments 32-bit high speed CPU of low power consumption
  • BioNANO V10 core fingerprint algorithm of high speed and stability
  • New generation waterproof, dustproof and scratchproof AFOS300 fingerprint sensor
  • User name display and human voice prompt
  • Realtime data transfer and WEB online tracking
  • USB Plug & Play connection. (No driver needed)
  • TCP/IP connectivity
  • USB pen drive data download
  • Optional high capacity 1100mAH Lithium battery backup. Ultra-long standby time up to 6 hours
  • Employee authentication methods: ID + password, ID + fingerprint, fingerprint + password, fingerprint only
  • Fast fingerprint scan in less than 0.5 second
  • 16 different customizable time and attendance status
  • 6-digit work code feature to calculate different job cost
  • Support multiple display and software language
  • EP300: Advanced (USB Device + USB Host + TCP/IP + high capacity Lithium battery)

Parameters:

Item Description
Algorithm BioNANO V10
Sensor AFOS300 Optical Sensor
Scan Area 22mm*18mm
Resolution 500 DPI
LCD 128*64 Blue LCD
Fingerprint Capacity 2000
Log Capacity 50000
Identification Mode FP, ID+FP, ID+PW, FP+PW
Identification Time <0.5 Sec
FRR 0.001%
FAR 0.00001%
Communication Interface USB Device, USB Host, TCP/IP
Fingerprint Image Display Yes
Self-defined Status 16
Work Code Yes
Web Server Yes
Size 185(w)*130(h)*35(d)mm
Temperature -10°C to 40°C
Operating Voltage DC 5V
Certificates FCC, CE
Applicable Situation Up to 1000 Employees

W1-Color Screen Fingerprint & RFID Time Attendance

Biometric//Fingerprint//Standalone Time Attendance

W1 is the new generation fingerprint time attendance terminal features based on Linux platform. W1 houses 2.8-inch color LCD with rich colors and visibility that displays intuitive GUI that is easy to understand and self-explanatory. Full capacitive touch keypads along with touch optical fingerprint sensor will offer convenient operation experience and improve the practicality of the wet and dry fingerprint.

W1 - Color Screen Fingerprint & RFID Time Attendance

Product Features:

Touch Keypad & Touch Active Sensor

When you reach out your hand to touch the keypad, W1 will be activated automatically and ready for your entering.When you place your finger on fingerprint sensor, sensor will be activated automatically and will awaken the device from sleep.

Cloud Management System Support

No need to install, maintain, or upgrade software. No expensive computers to purchase or maintain. Access data in real-time from any PC and Mobile with Internet.

Web Server

Basic Setting, Personnel Inquiry and Management, Records Inquiry.

URL

Support dynamic domain name server which offers a persistent domain name for non-static IP devices.

Output of Multiple Reports

Daily/individual summary and report, work hour displayed by hourly category. support CSV and XLXS export. Support report format design.

Parameters:

Item Description
Capacity User Max 3,000 Users
Template Max 3,000 Templates
Log Max 100,000 Logs
Inferface Comm. TCP/IP, Mini USB, USB Host
Feature Identification Mode Finger, Password, Card(Optional)
Verification Speed <0.5 Sec
Fingerprint Image Display Yes
Self-defined Status Yes
Workcode 6-digit Work Code
Webserver Internal Webserver
RFID Optional EM/Mifare Card
Software Crosschex Cloud & APP
Hardware CPU Industrial High Speed CPU
Sensor AFOS Optical Sensor (Touch Active Sensor)
Memory 512MB
LCD 2.8" Color Screen
Dimensions(WxHxD) 130x140x30mm (5.12x5.51x1.18?)
Temperature -25°C to 60°C
Power DC 5V

W2- Color Screen Fingerprint & RFID Access Control

Biometric//Fingerprint//Standalone Access Control

W2 is the new generation fingerprint access control & time attendance terminal features based on Linux platform. W2 with 2.8-inch color LCD, full capacitive touch keypads and touch optical fingerprint sensor will offer convenient operation experience and improve the practicality of the wet and dry fingerprint. W2 with TCP/IP communication and traditional RS485, Wiegand in/out to provide higher flexibility and multiple communication options for different environments. It also powerful access control interface relay output, door contact and multiple I/O ports can also be expanded with third party access control systems.

W2 - Color Screen Fingerprint & RFID Access Control

Product Features:

URL

Support dynamic domain name server which offers a persistent domain name for non-static IP devices.

Web Server

Basic Setting, Personnel Inquiry and Management, Records Inquiry.

Touch Keypad & Touch Active Sensor

When you reach out your hand to touch the keypad, W2 will be activated automatically and ready for your entering.When you place your finger on fingerprint sensor, sensor will be activated automatically and will awaken the device from sleep.

Cloud Management System

Support No need to install, maintain, or upgrade software. No expensive computers to purchase or maintain. Access data in real-time from any PC and Mobile with Internet.

Data Automatic Push

Support TCP/IP network communication, the access control data and events will push to the access control management software by real time.

Time Zone and Group

With 32 customize access control time zone and 16 permission groups make access control more easy.

Parameters:

Item Description
Capacity User Max 3,000 Users
Template Max 3,000 Templates
Log Max 100,000 Logs
Inferface Comm. TCP/IP, Mini USB, USB Host, RS485
Relay 1 Relay Output
I/O Wiegand input/output, Door Switch , Door Sensor,
Tamper Alarm
Feature Identification Mode Finger, Password, Card(Optional)
Verification Speed <0.5 Sec
Fingerprint Image Display Yes
Self-defined Status Yes
Webserver Internal Webserver
RFID Standard EM Card, Optional Mifare Card
Software Crosschex Cloud & APP
Hardware CPU Industrial High Speed CPU
Sensor AFOS Optical Sensor (Touch Active Sensor)
Memory 512MB
LCD 2.8" Color Screen
Dimensions(WxHxD) 83.9x204.9x31mm (3.3x8.06x1.22?)
Temperature -25°C to 60°C
Power DC 12V

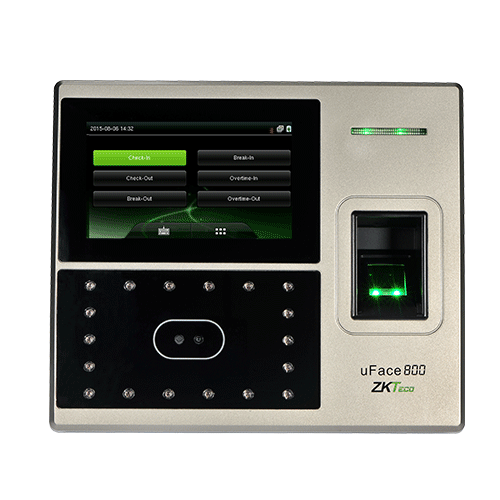

ZK - UFace800 Facial multi-biometric time & attendance and access control

uFace800 facial multi-biometric time & attendance and access control terminal supports up to 3,000 face templates, 4,000 fingerprint templates and 10,000 cards

With ZKTeco latest hardware platfrom and algorithm, it offers brand new UI and user-friendly operation interface to provide smooth user experience.

With advanced face algorithm and multi-biometric verification technology, the terminal's security level of verification is significantly enhanced.

ZK - UFace800

Product Features:

  • 3,000 face and 4,000 fingerprint templates
  • Multi-language
  • High verification speed
  • Advanced and user-friendly UI
  • Optional built-in battery backup, providing approximately 4 hours of continuous operation
  • New Framework firmware, easy to extend functions and customize client’s requirements
  • One face template is registered for one user only
  • Able to detect whether the face is an actual face or a photo, enhancing the security level of verification

Parameters:

Item Description
Display 4.3-Inch Touch Screen
Face capacity 3,000
Fingerprint capacity 4,000
ID Card capacity 10,000 (Optional)
Logs capacity 100,000
Communication TCP/IP, USB Host, WiFi(optional)
Standard Functions Automatic Status Switch, Self-Service Query, Work Code, SMS, DST, T9 Input, 9 Digit User ID, Scheduled Bell, Photo ID
Optional Functions MiFare Card, 3G, ADMS, 2000mAH Backup Battery
Power Supply 12V 3A
Operating Temperature 0 °C- 45 °C
Operating Humidity 20%-80%
Dimensions 193.6*165*111mm (Length*Width*Thickness)
Package Weight 1.87 kg

WM-5000V5 RFID Guard Tour System

It can scan the checkpoints info within 5cm. The G4S is using this one. WM-5000V5 works with RFID tags. It is with pogo pin connector instead of the normal USB port, which makes thedevice more durable and waterproof. This kind product is one of the most popular products in our customers.

WM-5000V5 RFID Guard Tour System

Product Features:

  • Military Components
  • Silicon Tank, Metal Body with rubber shell ou
  • IP67 durable and waterproof
  • Pogo pin connecting cable, high download speed
  • Four-Color bright LED lights
  • Data protection after power off

Parameters:

Item Description
IP Standard IP67
Storage Capacity 60,000
Reading Distance 3.5CM
Battery 880mAH 3.7V
Standby Time 29 Days, 500 Times Readings
Charging Time 2~3H
Temperature -40°C to +85°C
Parameter 144mm X 47mm X 30mm
Communication Pogo pin USB, 57,600BOS, 15,000 Records uploading/min
Weight 200g
